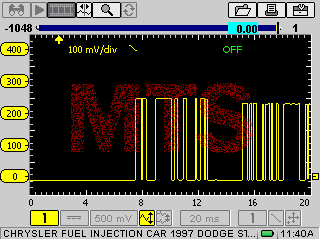

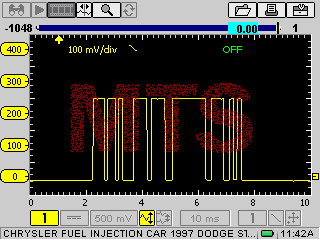

Chrysler CCD Bus Images Here are two more CCD communication images, connected in the manner that Ken mentioned, with the 20ms time and then also 10 ms. I'll upload one more at a 1s time frame that shows how much communication happens in one second, as each screen represents one second of time. These are from a 1997 Stratus, KOEO, with the negative lead hooked to pin 11, CCD- and the positive lead hooked to pin 3, CCD+. These captures show the actual communication better than the image I posted yesterday, but to me they also would serve a different purpose. Mike McLaughlin Freeland, Michigan USA TRNW Member Since: 09/08/2007
