ATSG CONFIRMED FIX

Confirmed fix - AS69RC - 6 speed - 2015 DODGE Ram - 5500


Complaint: High gear starts. Various electrical faults.
Cause: Moisture intrusion. Case connector pin terminal damage/corrosion. Internal harness connector damage.
Correction: Replace the case pass through connector with internal harness assembly.

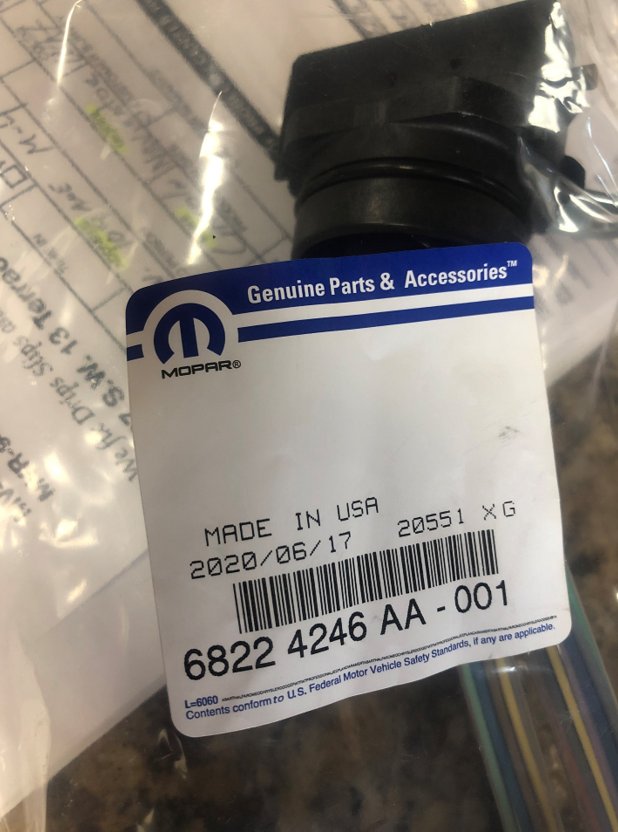

Part numbers related to the repair: see pics attached for OE part number info
Year Make and Model of the Vehicle: 2015 DODGE Ram 5500 with 6.7 diesel engine
Mileage: N/A
Shop Name: ALONSO TRANSMISSION
Transmission: AS69RC

Additional Notes: These trucks are known for trans connector pin terminal damage due to moisture intrusion. Be sure to check the vehicle harness connector side for presence of pins that have broken away from the case pass through connector. Assemble with dielectric grease to prevent moisture intrusion and fretting corrosion.


Pictures: Included below


Find thousands of Confirmed Fixes, Quick Reference Guides, Bulletins & Video Tutorials in the ATSG Member exclusive Tech Library along with unlimited calls into the tech hotline by joining ATSG today: https://bit.ly/ATSGmembership


ATSG Logo

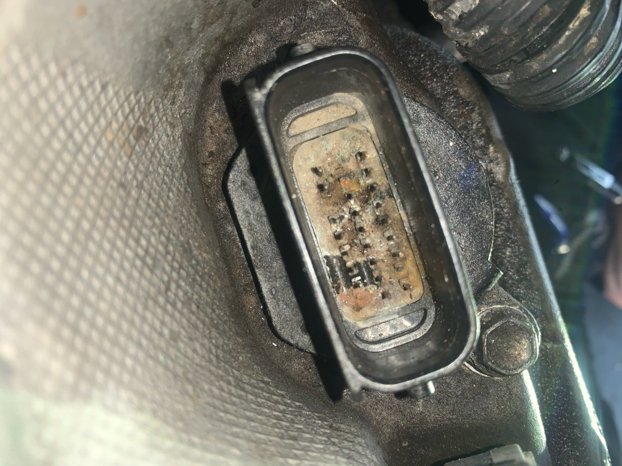

wiring connector
